1.2" 8x8 Matrix Square Pixel - Pure Green

Ontvang bij aankoop
minimaal 5 SOS spaarpunten
(t.w.v. €0,50)i

Niet op voorraad

Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.

Details
Reviews
Vragen over dit product

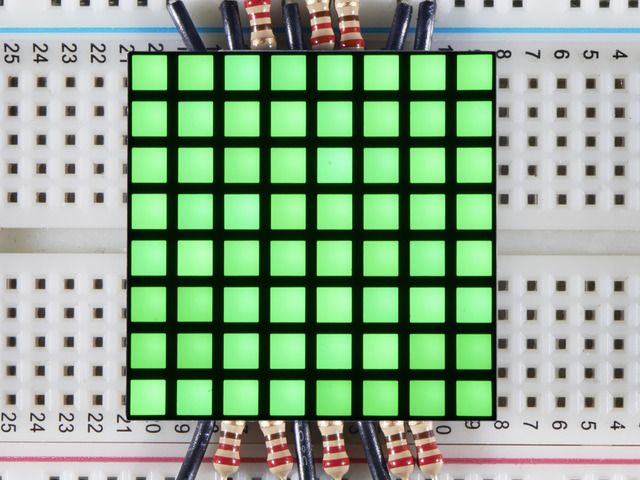

Make a scrolling sign, or a small video display with this 8x8 square gridded pure green LED matrix. Only 1.2" on a side, it is quite visible but not so large it won't plug into a breadboard! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.

These LEDs have a deeper green coloring, it's a beautiful shade but the process is different than our other 1.2" green LED matrices so be aware the colors won't match up.

Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices.
