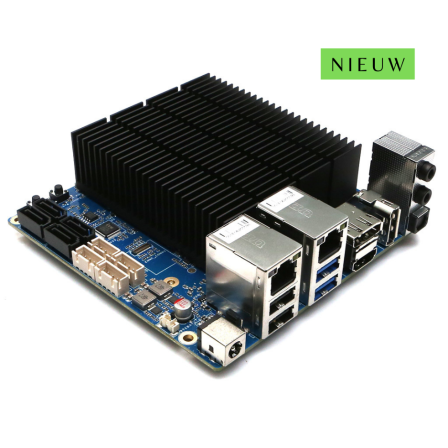

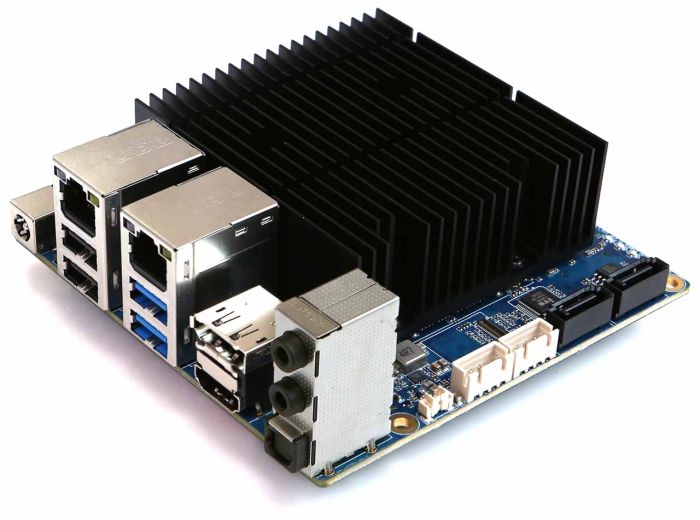

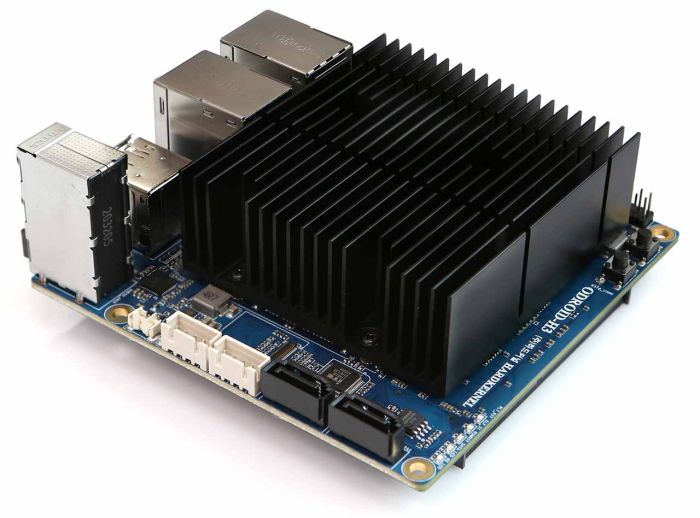

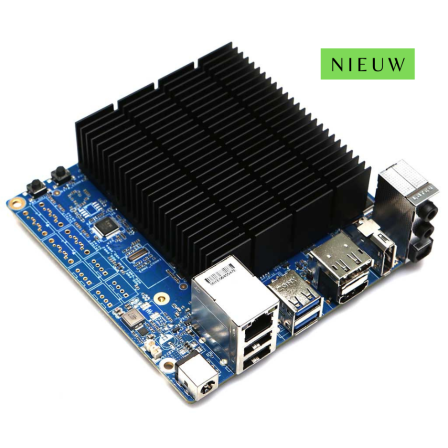

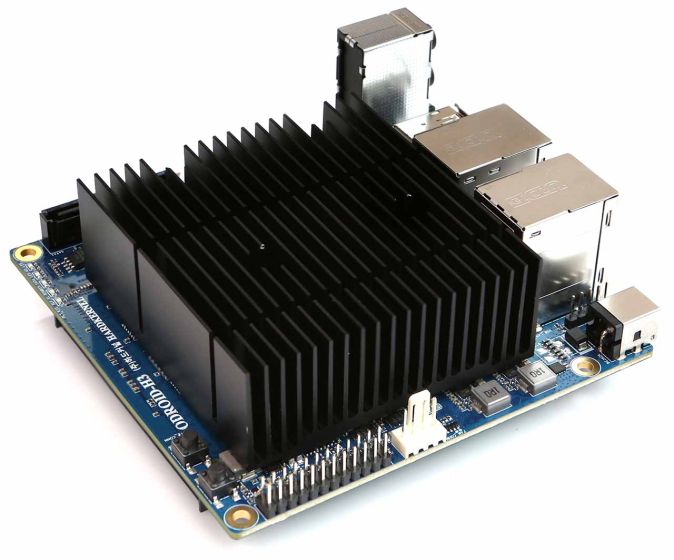

ODROID - H3

Met geweldige compatibiliteit, een gloednieuwe x86 64-bit single board computer met grote geheugencapaciteit en geavanceerde IO-poorten.

  • Intel® Quad-Core Processor Jasper Lake N5105 has a base clock of 2GHz and a boost clock of 2.9GHz with 1.5 MB L2 and 4 MB L3 cache by a 10 nm process.
  • Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
  • Two SO-DIMM slots, up to 32GB per slot
  • PCIe 3.0 x 4 lanes for one M.2 NVMe storage
  • 2 x 2.5Gbit Ethernet ports
  • 2 x SATA 3.0 ports
  • SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
  • Intel UHD Graphics 24 EUs Turbo 800MHz(H3+:900MHz)
  • HDMI 2.0 and DP 1.2 multiple video outputs
  • A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
  • RTC / BIOS backup battery is included

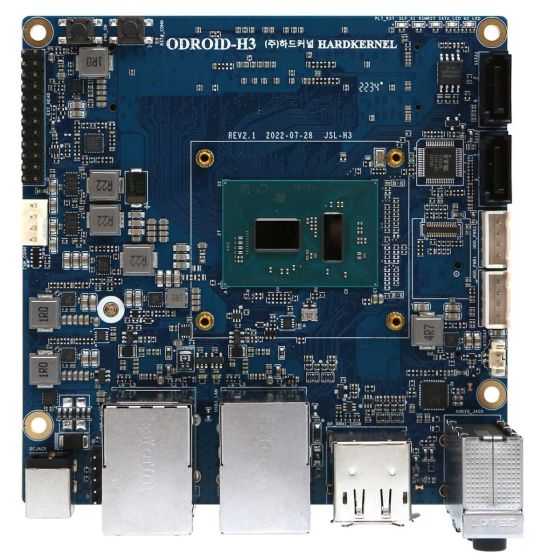

  • A. CPU (Intel Celeron N5105)
  • B. 2 x DDR4 SO-DIMM slots (Dual channel memory support)
  • C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
  • D. 1 x eMMC (Embedded Multimedia-Card) Socket
  • E. 2 x SATA Power Connectors (2.5mm pitch, JST-XH compatible connector)
  • F. 2 x SATA3 6.0 Gb/s Data Connectors
  • G. 1 x DC Power Jack
  • H. 2 x USB 3.0
  • I. 2 x USB 2.0
  • J. 1 x HDMI 2.0
  • K. 1 x DisplayPort 1.2
  • L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
  • M. 5 x System LED Indicators
  • N. 1 x Peripheral Expansion Header (24-pin)
  • O. 1 x Power Switch
  • P. 1 x Reset Switch
  • Q. 1 x Backup Battery Connector (2-pin)
  • R. 1 x Active Cooling Fan Connector (4-pin)
  • S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out

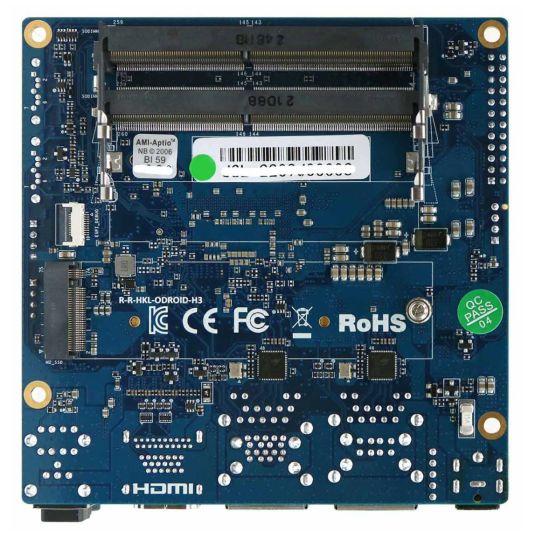

-On the H3+ board, a yellow round sticker is attached on the product serial label and, on the H3 board, a green round sticker is attached.


Meer informatie
Artikelnummer G220915140802
Merk Odroid
Fabrikantcode G220915140802
Garantie 2 Jaar
Afmetingen 110mm x 110mm x 47mm
Processor (CPU) Intel Celeron N5105(H3+: N6005) Processor (10nm, Quad-Core, TDP 10W) H3(N5105) : up to 2.9GhzH3+(N6005) : up to 3.3Ghz 4MB L2 Cache Intel UHD Graphics (24/32 EU up to 900MHz)
Geheugen 2 x DDR4 1.2V SO-DIMM slots Dual Channel, up to 2933 MT/s (DDR4-PC23400) Max memory capacity 64GB DDR3/DDR5 are not supported
Stroomvoorziening DC jack : outer (negative) diameter 5.5mm, inner(positive) diameter 2.1mm DC 14V ~ 20V (up to 60W) – DC 15V/4A power adapter is recommended if you don’t use two 3.5“ HDDs – DC 19V/7A power adapter is recommended if you two 3.5” HDDs together Power cons
Verbindingen

2 x USB 3.0 Host ports

2 x USB 2.0 Host ports

1 x Peripheral Expansion Header (24-pin, 2.54mm pitch)

– 1 x DC 5V, 1 x DC 3.3V, 5 x GND

– 1 x UART (TXD/RXD/RTS/CTS)

– 2 x I2C (SCL/SDA)

– 1 x External Power Button

– HDMI CEC, 5VA+

– Three USB 2.0 ports

– All 3.3V I/O signal level

1 x eMMC connector (bootable and selectable on BIOS)

Various eMMC modules can be purchased at Hardkernel store

2 x SATA3 6Gbps

1 x M.2 slot (PCIe 3.0 x 4, supports NGFF-2280 cards)

M.2 SATA SSD is not supported

Features Overig

Passive Heatsink

BIOS Backup Battery

– Maintains system time and BIOS settings

Power Button

Reset Button

System LEDS Indicators:

– Red (PWR) – Solid light when DC power is supplied

– Blue (left, SLEEP) – turns off only when the system enters into suspend mode

– Blue (right, PMIC) – turns on only when the major power rails are working

– Amber (SATA) – Flashes when SATA data transfers

– Green (NVMe) – Flashes when NVMe data transfers

Active Cooling Fan Connector (12V 4-pin, PWM input + TACHO output)

– Active Cooling Fan is optional

– Connector (4-pin, 2.54mm pitch)

Audio

1 x Audio out (3.5mm jack)

1 x Audio in (3.5mm jack)

1 x SPDIF out (ALC1200, HDA codec)

* HDMI & DP have audio output too



Video

1 x DisplayPort 1.2 (up to 4K@60Hz)

1 x HDMI 2.0 (up to 4K@60Hz)

Dual simultaneous display support
