Arducam 16MP Autofocus USB Camera IMX298 Mini UVC USB2.0 4K

• High-Quality Imaging: This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.

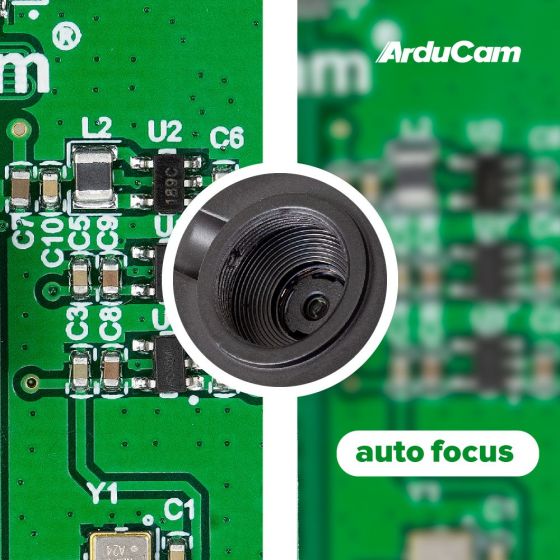

• Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
• Capture Video with Audio: Built-in single Microphone for smooth video at a fluid 30 frames (optional dual/single channel). Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@1024x768/800x600/640x480.

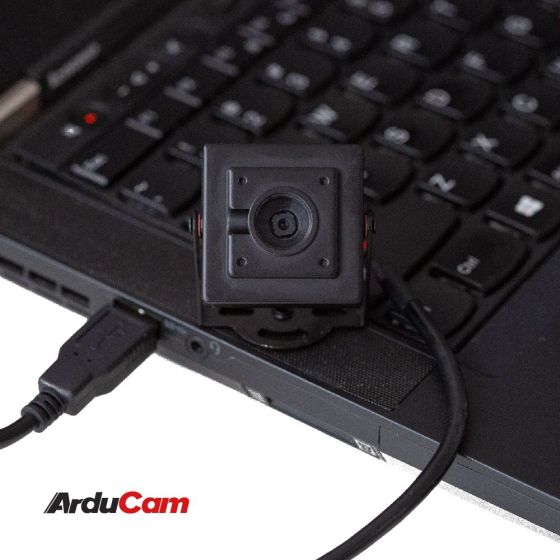

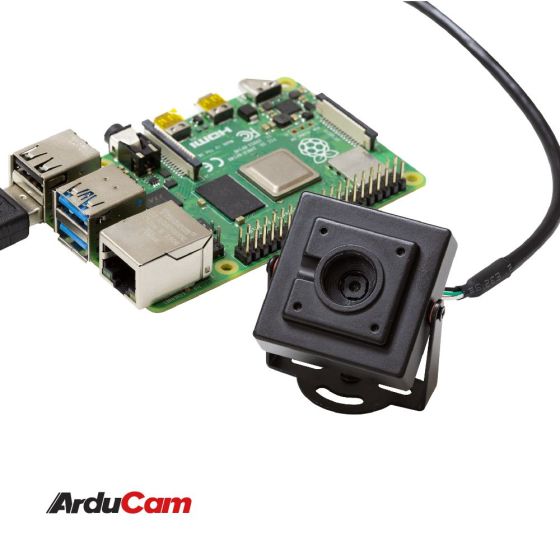

• Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
• Applications: Comes with a metal case and rotatable bracket, this mini-sized camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision applications which demand high resolution.

Camera
- Sensor: 1/2.8” IMX298
- Resolution: 16MP 4656H x 3496V
- Data Format: MJPG/YUY2
- Frame Rate:
MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720;
YUY2 10fps@1024x768/800x600/640x480

Lens
- Field of View (FOV)：H= 60°
- Focusing Range: 100mm to infinity
- IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
