Hifiberry DAC2 Pro Audio Board

OVERVIEWThe HiFiBerry DAC2 Pro is a high-resolution digital-to-analog andanalog-to-digital converter for the Raspberry Pi (newer models with40 pin GPIO connector). This is a special sound card for the RaspberryPi, optimised for one specific use case: affordable high-quality audioplayback. • Stereo output • Integrated headphone amplifier• can be e...

Bestel nu en ontvang op 23-10-2020.
€ 39,90 € 32,98
Ontvang bij aankoop
minimaal 19 SOS spaarpunten
(t.w.v. €1,90)i
Op voorraad
Gratis verzenden

OVERVIEW
The HiFiBerry DAC2 Pro is a high-resolution digital-to-analog and
analog-to-digital converter for the Raspberry Pi (newer models with
40 pin GPIO connector). This is a special sound card for the Raspberry
Pi, optimised for one specific use case: affordable high-quality audio
playback.

• Stereo output

• Integrated headphone amplifier

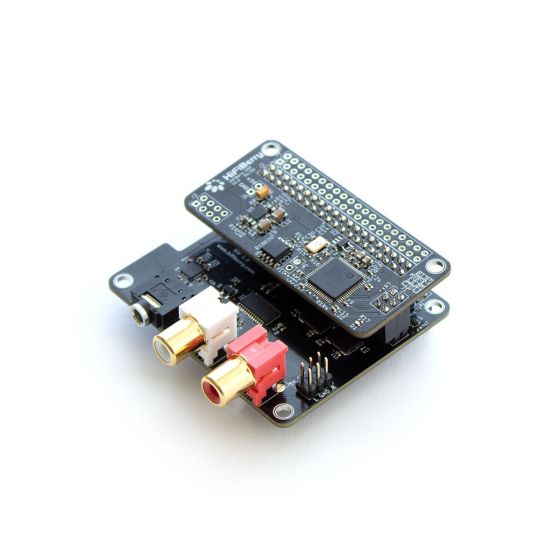

• can be equipped with an additional Digital Signal Processor
(DSP) for flexible audio processing
• Dedicated 192kHz/24bit high-quality Burr-Brown DAC
• Hardware volume control for DAC. You can control the input
and output parameters using “alsamixer” or any application that
supports ALSA mixer controls.
• Connects directly to the Raspberry Pi, no additional cables
needed
• No soldering, comes as a pre-fabricated kit. You just plug it
onto the Raspberry Pi, it is conform to the Raspberry Pi
hardware-attached-on-top (HAT) specification.
• Compatible with all Raspberry Pi models with a 40-pin GPIO
connector
• Directly powered from the Raspberry Pi, no additional power
supply
• Two ultra-low-noise linear voltage regulators for optimal audio
performance
• Low-jitter dual-domain clock for optimised clock decoupling
from the Raspberry Pi
• HAT compliant, EEPROM for automatic configuration
• Gold plated RCA output connectors
• Comes with all components required to mount it. We include 4
M2.5x12mm spacers to fix the board onto the Raspberry Pi
• Audio connector to connect analog audio amplifier

Meer informatie
Merk HiFiBerry
EAN 4260439550767
Fabrikantcode 4260439550767
Garantie 2 Jaar
Kleur Zwart
Geschikt voor Raspberry Pi 2 en 3 Model B, Raspberry Pi 3 Model B, Raspberry Pi 3 Model B+, Raspberry Pi 4 Model B
