ODROID-HC4-P KIT

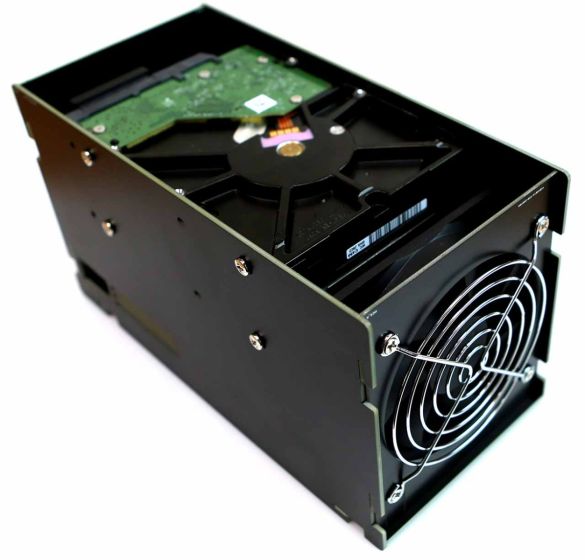

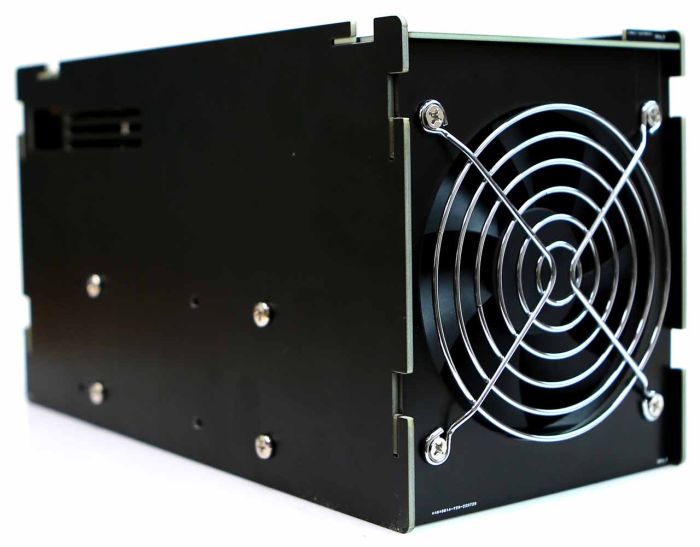

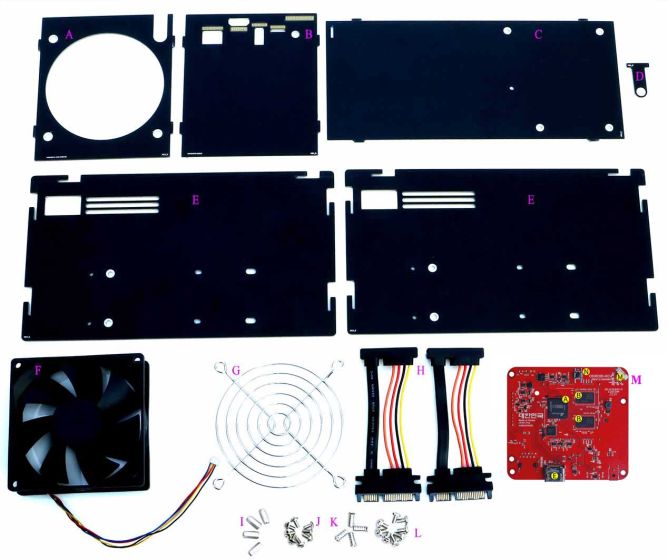

Deze nieuwe kit bestaat uit een ODROID HC4 Board, een behuizing gemaakt van een PCB waarin je twee 3,5-inch HDD's horizontaal kan monteren, koelventilator, kabels en bouten.
Het is je eigen netwerkopslagapparaat dat je met veel plezier zelf kunt maken, en de Petitboot-functie van de HC4 en verschillende nieuwste OS-ondersteuning kunnen zonder enige wijzigingen worden gebruikt.

Houd er rekening mee dat dit product geen opslagapparaat van 2,5 inch kan monteren.
Opmerking! Deze KIT bevat GEEN OLED+RTC voor HC4-P. (Individueel verkocht)

Board Detail



A CPU (Amlogic S905X3) H 2x System LED indicators
B DDR4 memory (4GiB) I 1x UART for system console
C 2x SATA ports J 1x IR receiver

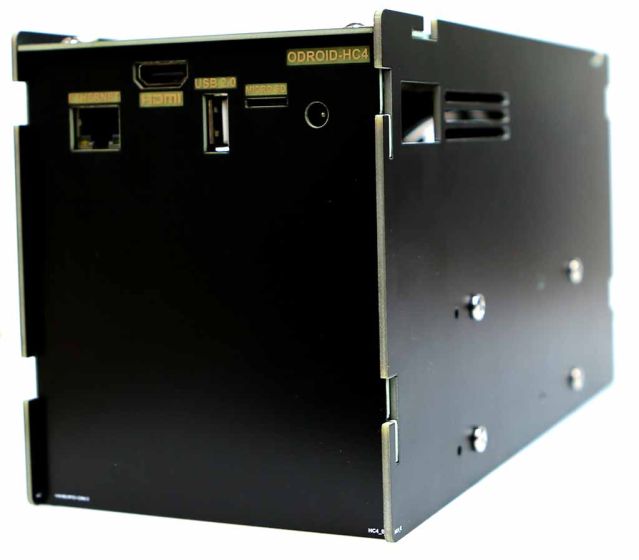

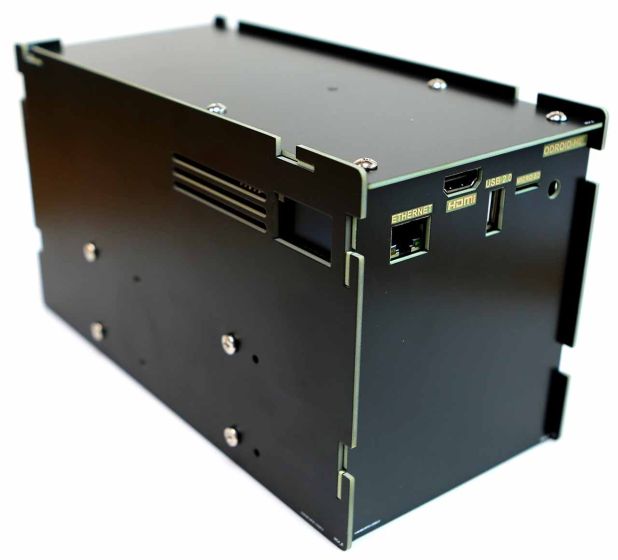

D 1x RJ45 Ethernet port (10/100/1000) K 5x GPIO pins (for optional OLED display)
E 1x HDMI 2.0 L 1x Micro SD slot
F 1x USB 2.0 host port M 1x Cooling fan
G 1x DC power jack (Outer diameter : 5.5mm, inner diameter 2.1mm) N 1x Boot switch



Block diagram



SATA interface performance

We connected a SATA SSD to the HC4 platform and measured the storage IO throughput. We could observe 390~420MB/s transfer speed which is not saturated at the maximum level ~500MB/s which is quite good for many applications.

odroid@hc4:/media/ssd2$ iozone -e -I -a -s 100M -r 4k -r 16384k -i 0 -i 1 -i 2

       Iozone: Performance Test of File I/O

               Version $Revision: 3.489 $

               Compiled for 64 bit mode.

               Build: linux-arm

                                                             random    random

             kB  reclen    write  rewrite    read    reread    read     write

         102400       4    44097    62373    75362    75511    39859    60806

         102400   16384   428515   426902   390226   392564   391412   427137

SMB/CIFS network file transfer performance over the Gbit Ethernet connection

As shown below Windows OS client shows a sustainable 100+ MB/s transfer speed when we download/upload large files.

Downloading

Uploading

Helios LAN Test Result

Samsung 860 EVO 250GB SSD

Seagate Barracuda 2TB HDD (ST2000DM006)



Power Consumption

Note 1: ST2000DM006 spin-down power consumption is 0.75W per HDD. Therefore, the HC4 idle mode power consumption is about 4W.

Note 2: Power consumption in Active state is tested while copying huge files through SAMBA service.

Note 3: Wake-up sources for the Suspend mode: Wake-on-LAN, IR remote receiver and RTC Alarm.



Software Support

Petitboot can find the OS on the SD card, the HDD or the SSD. So even if you do not have an SD card but you have a plugged-in HDD or SSD that has an OS installed, Petitboot will boot the HC4 using the OS from the HDD or SSD. Debian/Ubuntu OS can run with the Hardkernel’s preinstalled OS image or Debian/Ubuntu Netboot Installer which you can obtain from the ODROID forum.

Supported Linux kernel versions are:

  1. 4.9.230 or newer (Hardkernel stock OS version)
  2. Mainline kernel 5.15 or newer (Unofficial version from ODROID forum)
Meer informatie
Artikelnummer G221004114427
Merk Odroid
Fabrikantcode G221004114427
Garantie 2 Jaar
Afmetingen Board Dimensions: 84mm x 90.5mm x 25.0mm / Transformation KIT Dimensions : 225mm x 106mm x 127mm
Gewicht Weight: 615g including board and transformation KIT without HDD
Aansluitingen

Passive heatsink ( 40x32x10 mm ) on the CPU of PCB board
Bearing : Hydraulic Bearing FAN
– Rated Voltage : 5V
– Rated Current : 0.2A
– Max Speed RPM : 2000RPM
– Air Flow CFM : 33
– Air Pressure (In H2O) : 0.08
– Noise Level(dBA) : 26.5
– Dimension : 92X92X25MM
– Wire & Connector : 150mm, 4pin 1.25mm pitch
- 1 x USB 2.0 host port
1 x Debug serial console (UART)
2 x SATA ConnectorsIR receiver for remote controller
System LED Indicators:
– Red (POWER) – Solid light when DC power is connected
– Blue (ALIVE) – Flashing like heartbeat while Kernel is running.

Processor (CPU) Amlogic S905X3 Processor L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor L3 data cache: 512KB , 16-way set ass
Intern Werkgeheugen (RAM) 1x Micro SD slot (DS/HS mode up to UHS-I SDR104)
Geheugen DDR4 4GiB with 32-bit bus width Data rate: 2640 MT/s (PC4-21333 grade) 1.2Volt low power design
Stroomvoorziening 1 x DC jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm DC input : 14.5V ~ 15.5V – DC 15V/4A power adaptor is recommended. Sold separately. Power consumption with two ST2000DM006 HDDs : – IDLE(with HDD in spin-down) : ≃ 5.88W – Acti
Verbindingen

1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)
– Realtek RTL8211F (Ethernet transceiver)
– LED indicators
* Green LED: Flashing by data traffics at 100Mbps connection
* Amber LED: Flashing by data traffics at 1000Mbps connection

Audio
1 x HDMI digital output
Video
1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
