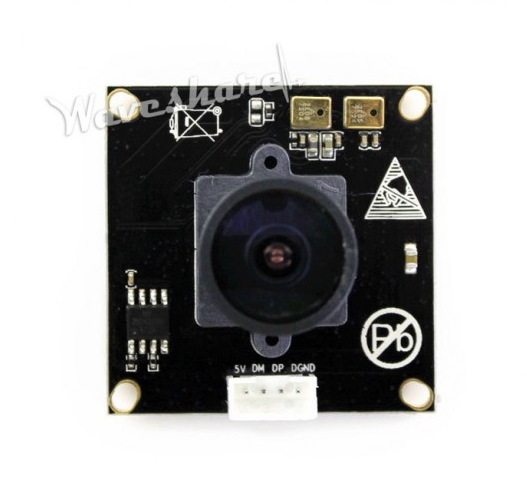

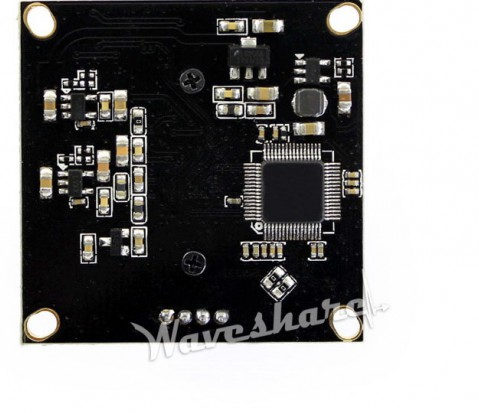

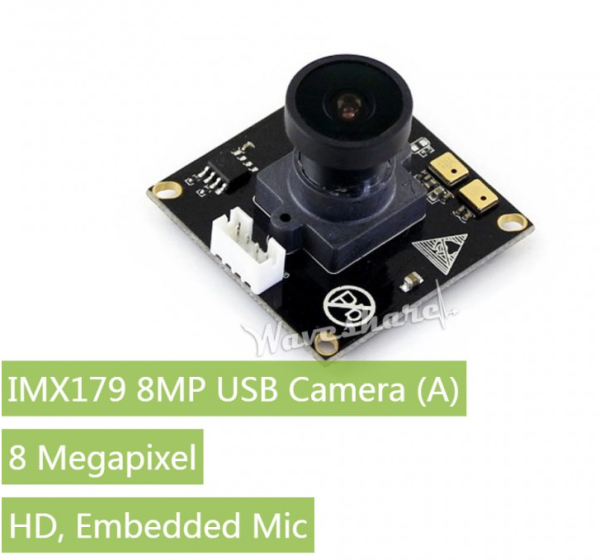

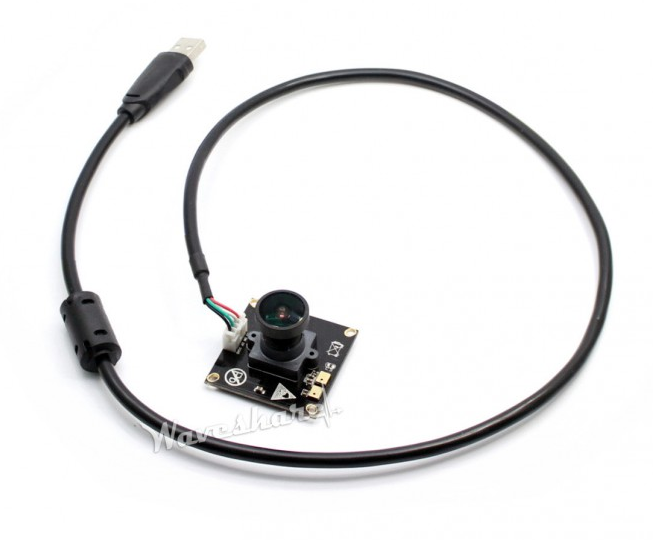

Waveshare IMX179 8MP USB Camera (A), HD, Embedded Mic

IMX179 8MP USB Camera (A), HD, Embedded Mic

€ 48,95 € 40,45
Ontvang bij aankoop
minimaal 24 SOS spaarpunten
(t.w.v. €2,40)i
Niet in voorraad
Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.

Features

  • 8 megapixel IMX179 sensor
  • 3288x2512 resolution
  • USB interface, UVC protocol, driver-free, plug-and-play
  • Supports Raspberry Pi and Jetson Nano
  • DSP
    • Automatic white balance (AWB)
    • Automatic exposure (AEC)
    • Automatic gain control (AGC)
  • Camera specifications
    • CCD size: 1/3.2inch
    • Aperture (F): 1.8
    • Focal Length: 2.8mm
    • Field of View (Diagonal): 145°
  • Mic specifications
    • Sensitivity: -26dB (1kHz 1Pa)
  • Interface: USB2.0
  • Image formats: MJPEG, YUY2
  • Operating temperature: 0°C ~ 50°C
  • Dimension: 38mmx38mm
  • Supported OS: Windows, Linux

Development Resources

Wiki : www.waveshare.com/wiki/IMX179_8MP_USB_Camera_(A)

Selection Guide

PART NUMBER PIXELS SENSOR BEST RESOLUTION DIMENSION FIELD OF VIEW  FEATURE
OV2710 2MP USB Camera (A) 2 mega OV2710 1920x1080 38mmx38mm 145° Low-light sensitivity
OV5648 5MP USB Camera (A) 5 mega OV5648 2592x1944 9mmx62mm 70° Small in size
 IMX179 8MP USB Camera (A)
Meer informatie
Merk Waveshare
