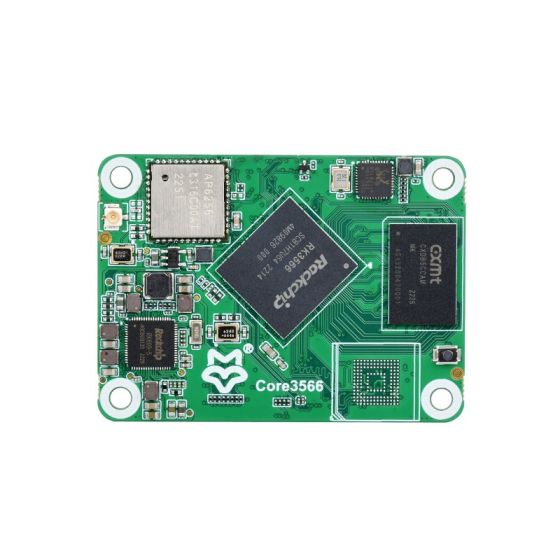

Core3566 Module Quad-core Processor Rockchip RK3566


Specifications
Processor Quad-core Arm Cortex-A55 @1.8GHz
Memory Options for 2GB/4GB LPDDR4 SDRAM memory
Storage Options for 0GB (Lite) or 32GB eMMC Flash
NPU 0.8 TOPS @INT8
GPU Arm Mali-G52 2EE
Connectivity Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna
Supports IEEE 802.3 Gigabit Ethernet.
USB 2.0 × 1
PCIe Gen 2 x 1
28 GPIO signals
SD card interface (booted from eMMC first)
Video HDMI interface (4Kp60 supported)
2-lane MIPI DSI display interface × 2
2-lane MIPI CSI camera interface × 2
Multimedia 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
Operating Voltage 5V DC
Operating Temp. -10°C ~ 80°C ambient
Dimensions 55 × 40 × 4.7mm

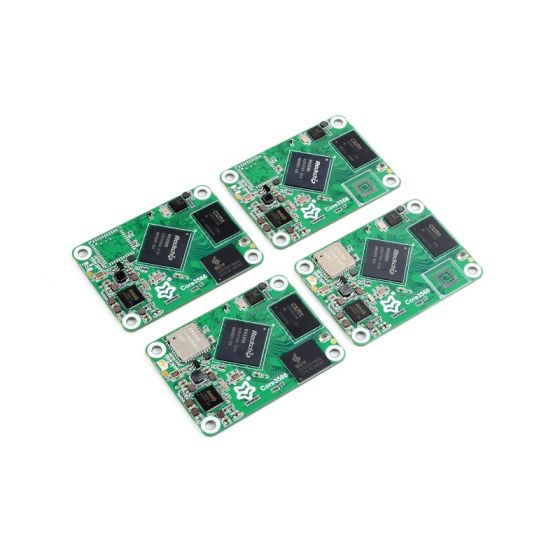

Available Options
Highly Integrated, Powerful Performance

Integrated With CPU, GPU, VPU, NPU, Etc.

  • RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
  • Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
  • The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
  • The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
  • The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow
High Speed WiFi And Bluetooth

Dual-Band WiFi And Bluetooth AP6256 Module, Surf The Web Anywhere

* Note: WiFi function is optional, and an additional antenna is required for WiFi module since it has no onboard antenna.

Compatible With CM4 Base Board

* Note: some interfaces such as USB2.0, HDMI, CSI, etc. are not compatible, please check our Wiki for details.

Product Details

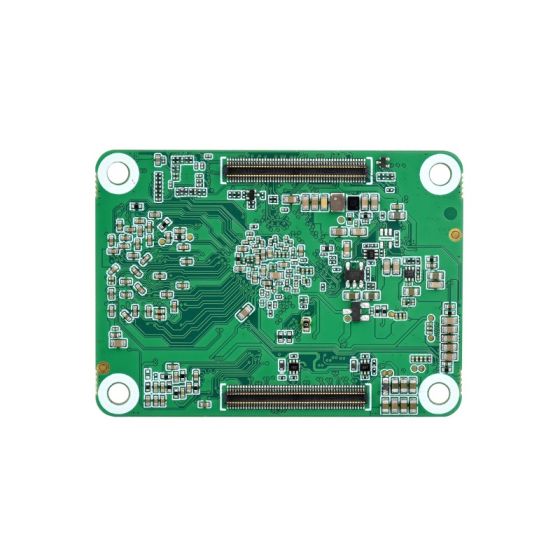

Onboard Resources

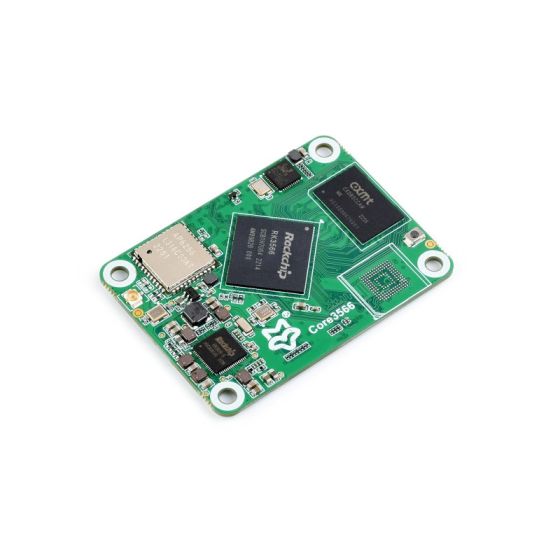

Product Show

Meer informatie
Artikelnummer 24848
Merk LuckFox
Garantie 2 Jaar
