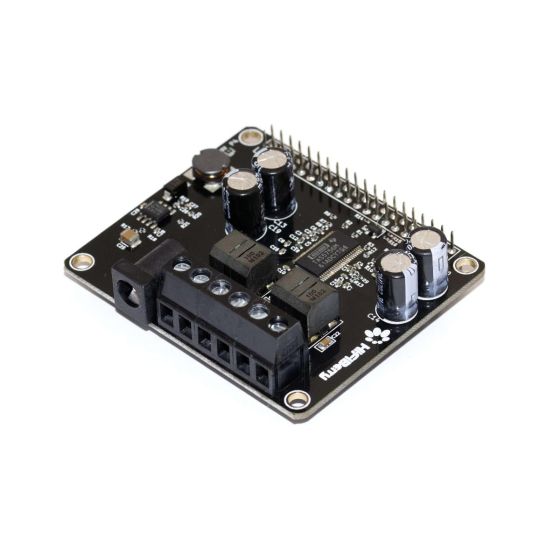

HiFiberry AMP2 met spacers
The HiFiBerry Amp is a high-quality, highly efficient Class-D power amplifier for the Raspberry Pi.
Mount it onto the Raspberry Pi and you have a stereo audio system. You only have to connect your loudspeakers. It provides up to 60W power. You only need a single 12-24V power supply to power the Raspberry Pi and the Amp+. With 4 Ohm speakers, we recommend 12-18V. Higher operating voltages are only recommended with 8 Ohm speakers.
It powers the Raspberry Pi, there is no need to add an external 5V power supply to the Raspberry Pi.
The Amp2 is designed to work with all speakers or 4-8 Ohm impedance. It supports sample rates from 44.1-192kHz.
The speaker connections are the same as on the Amp+.
If the software you’re using doesn’t provide the Amp2 as an output option, you should use the HiFiBerry DAC+ driver as the Amp2 is basically a DAC+ with an integrated power stage.
|Geschikt voor||Raspberry Pi Model B+, Raspberry Pi Model 2B en 3B|
